import { useState } from "react";

function UseState() {
  const [text, setText] = useState(0);

  return (
    <div onClick={ () => { setText(1) } }>{ text }</div>
  )
}

export default UseState;

useState<S>(
  initialState: (() => S) | S,
): [S, Dispatch<BasicStateAction<S>>] {
  ···
    // initialState is the initial value passed to useState
    return mountState(initialState);
  ···
}

function mountState<S>(
  initialState: (() => S) | S,
): [S, Dispatch<BasicStateAction<S>>] {
  // Steps for generating hooks linked list, see [previous article](https://github.com/IWSR/react-code-debug/issues/2)
  const hook = mountWorkInProgressHook();
  if (typeof initialState === 'function') {
    // The type declaration of initialState indicates that it can also be a function
    initialState = initialState();
  }
  // The memoizedState and baseState on the hook will cache the initial value of useState
  hook.memoizedState = hook.baseState = initialState;
  // Important structure mentioned during updates
  const queue: UpdateQueue<S, BasicStateAction<S>> = {
    pending: null,
    interleaved: null,
    lanes: NoLanes,
    dispatch: null,
    lastRenderedReducer: basicStateReducer,
    lastRenderedState: (initialState: any),
  };
  hook.queue = queue; // The hooks object corresponding to useState will have multiple queue properties
  const dispatch: Dispatch<
    BasicStateAction<S>,
  > = (queue.dispatch = (dispatchSetState.bind(
    null,
    currentlyRenderingFiber,
    queue,
  ): any)); // This is the focus of the analysis in this article, a very important function
  // Corresponds to the return value of const [text, setText] = useState(0);
  return [hook.memoizedState, dispatch];
}

function basicStateReducer<S>(state: S, action: BasicStateAction<S>): S {
  return typeof action === 'function' ? action(state) : action;
}

function dispatchSetState<S, A>(
  fiber: Fiber,
  queue: UpdateQueue<S, A>,
  action: A,
) {

  /**
   * Here, we temporarily understand it as obtaining the priority of the current update
  */
  const lane = requestUpdateLane(fiber);

  /**
   * Similar to the update linked list of setState
   * Here, the update is also a linked list structure
  */
  const update: Update<S, A> = {
    lane,
    action,
    hasEagerState: false,
    eagerState: null,
    next: (null: any),
  };

  /**
   * Determine if it is a render phase update
  */
  if (isRenderPhaseUpdate(fiber)) {
    enqueueRenderPhaseUpdate(queue, update);
  } else {
    const alternate = fiber.alternate;
    /**
     * Determine if React is currently idle
     * For example, after the first call to dispatch, fiber.lanes will not be NoLanes
     * Therefore, the second call to dispatch will not enter the eagerState evaluation for the update instance
    */
    if (
      fiber.lanes === NoLanes &&
      (alternate === null || alternate.lanes === NoLanes)
    ) {
      // The queue is currently empty, which means we can eagerly compute the
      // next state before entering the render phase. If the new state is the
      // same as the current state, we may be able to bail out entirely.
      const lastRenderedReducer = queue.lastRenderedReducer;
      if (lastRenderedReducer !== null) {
        let prevDispatcher;

        const currentState: S = (queue.lastRenderedState: any);
        /**
         * Calculate the expected state and temporarily store it in eagerState
         * The logic inside lastRenderedReducer is as follows
         * Determine whether the current action is a function
         * After all, there are calls like setText((preState) => preState + 1)
         * If it is a function, pass currentState and call action to get the computed value
         * If not, for example, in the case of setText(1), just return action directly
        */
        const eagerState = lastRenderedReducer(currentState, action);
        // Stash the eagerly computed state, and the reducer used to compute
        // it, on the update object. If the reducer hasn't changed by the
        // time we enter the render phase, then the eager state can be used
        // without calling the reducer again.
        update.hasEagerState = true; // According to the comment, to prevent repeated calculations by the reducer
        update.eagerState = eagerState;
        /**
         * Check if the values are equal using shallow comparison ===
        */
        if (is(eagerState, currentState)) {
          // Fast path. We can bail out without scheduling React to re-render.
          // It's still possible that we'll need to rebase this update later,
          // if the component re-renders for a different reason and by that
          // time the reducer has changed.
          // TODO: Do we still need to entangle transitions in this case?
          /**
           * According to the comment, if the value hasn't changed, there's no need to schedule React to re-render
           * The function below only handles the structure of the update linked list
          */
          enqueueConcurrentHookUpdateAndEagerlyBailout(
            fiber,
            queue,
            update,
            lane,
          );
          return; // Since there's no need to schedule, the function breaks here
        }

      }
    }
    /**
     * Because the update running here is considered necessary to be re-rendered on the page
     * enqueueConcurrentHookUpdate is different from enqueueConcurrentHookUpdateAndEagerlyBailout
     * It will call markUpdateLaneFromFiberToRoot
     * This function will mark the lane corresponding to the current update from the fiber node where the update occurred, layer by layer up to the root
     * The purpose of calling markUpdateLaneFromFiberToRoot is to prepare for the scheduling of scheduleUpdateOnFiber
    */
    const root = enqueueConcurrentHookUpdate(fiber, queue, update, lane);
    if (root !== null) {
      const eventTime = requestEventTime();
      /**
       * Enter the scheduling process (the analysis of scheduleUpdateOnFiber has been updated at the bottom)
       * However, in v18, it will be registered as a microTask
       * In v17, it was registered in the scheduler with the corresponding priority
      */
      scheduleUpdateOnFiber(root, fiber, lane, eventTime);
      /**
       * An unstable function, roughly handles lanes, a bit difficult to understand, not analyzed here
      */
      entangleTransitionUpdate(root, queue, lane);
    }
  }

  markUpdateInDevTools(fiber, lane, action);
}

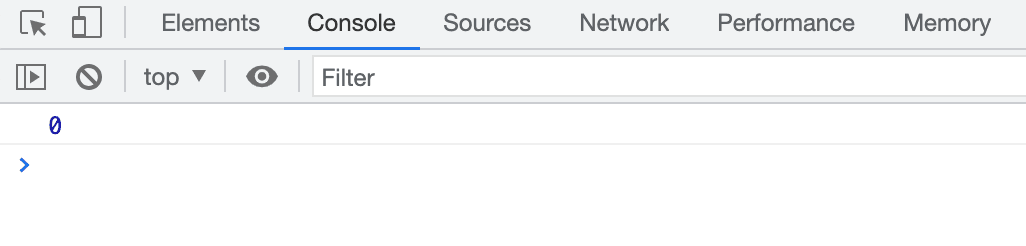

import { useState } from "react";

function UseState() {
  const [text, setText] = useState(0);

  return (
    <div onClick={ () => { setText(1); console.log(text); } }>{ text }</div>
  )
}

export default UseState;

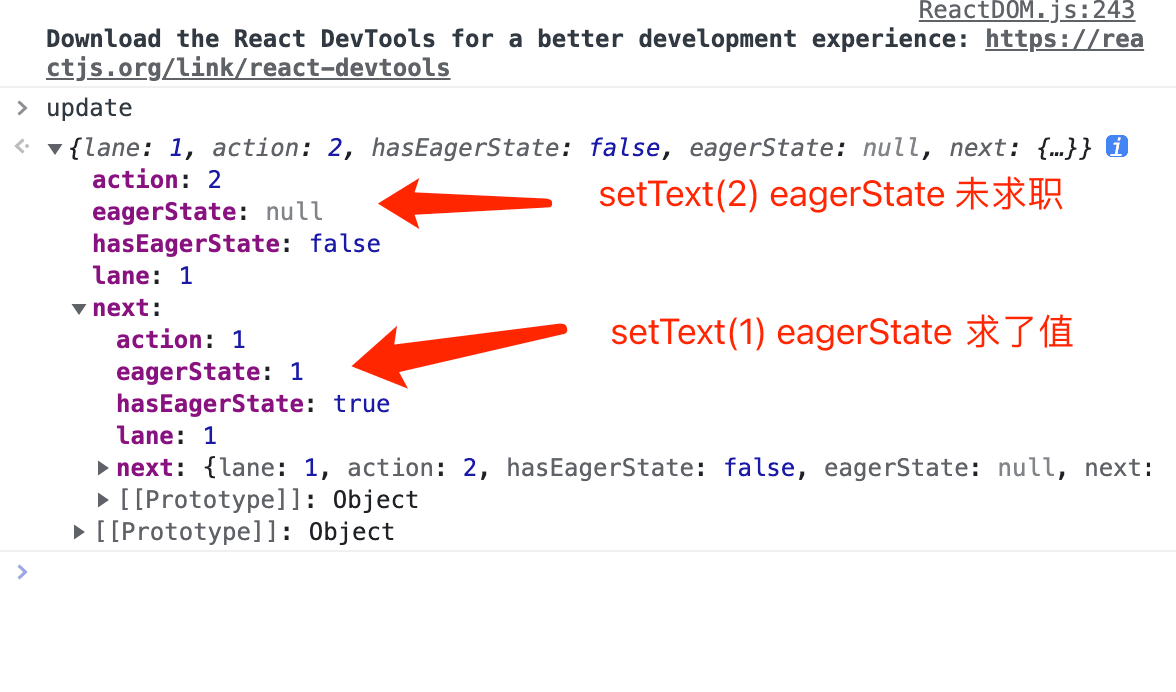

import { useEffect, useState } from "react";

function UseState() {
  const [text, setText] = useState(0);

  return (
    <div onClick={ () => {
      setText(1);
      setText(2); // Set a breakpoint here
    } }>{ text }</div>
  )
}

export default UseState;

function updateReducer<S, I, A>(
  reducer: (S, A) => S,
  initialArg: I,
  init?: I => S,
): [S, Dispatch<A>] {
  /**
   * This function also appears in use(Layout)Effect, and its main role is to
   * simultaneously move the WIP hooks and current hooks pointers one step forward
   * Detailed comments can be found in [React Hooks: Appendix](https://github.com/IWSR/react-code-debug/issues/4)
  */
  const hook = updateWorkInProgressHook(); // WIP hooks object
  const queue = hook.queue; // update linked list

  if (queue === null) {
    throw new Error(
      'Should have a queue. This is likely a bug in React. Please file an issue.',
    );
  }

  // In the useState scenario, lastRenderedReducer is basicStateReducer — the reducer preset in mountState
  queue.lastRenderedReducer = reducer;

  const current: Hook = (currentHook: any);

  // The last rebase update that is NOT part of the base state.
  let baseQueue = current.baseQueue;

  // The last pending update that hasn't been processed yet.
  // Get the pending state update that has not been calculated yet
  const pendingQueue = queue.pending;
  /**
   * Organize the update queue to prepare for subsequent updates
  */
  if (pendingQueue !== null) {
    // We have new updates that haven't been processed yet.
    // We'll add them to the base queue.
    // Connect pendingQueue with baseQueue
    if (baseQueue !== null) {
      // Merge the pending queue and the base queue.
      const baseFirst = baseQueue.next;
      const pendingFirst = pendingQueue.next;
      baseQueue.next = pendingFirst;
      pendingQueue.next = baseFirst;
    }

    current.baseQueue = baseQueue = pendingQueue;
    queue.pending = null;
  }
  /**
   * The processed baseQueue contains all update instances
  */
  if (baseQueue !== null) {
    // We have a queue to process.
    const first = baseQueue.next;
    let newState = current.baseState;

    let newBaseState = null;
    let newBaseQueueFirst = null;
    let newBaseQueueLast = null;
    let update = first;
    do {
      const updateLane = update.lane;
      /**
       * Filter out updates included in renderLanes
       * This step is related to bitwise operations
       * If updateLane belongs to renderLanes, it means the current update's priority is urgent
       * and needs to be processed; otherwise, it can be skipped.
       * Similar logic also exists in the update linked list of class components (not detailed here)
       * However, here it is a NOT operation, so it is the opposite
      */
      if (!isSubsetOfLanes(renderLanes, updateLane)) {
        // Priority is insufficient. Skip this update. If this is the first
        // skipped update, the previous update/state is the new base
        // update/state.
        /**
         * Entering this logic means that the update is not very urgent and can be processed slowly
         * However, this does not mean it will not be processed; it will still be recalculated from the skipped updates when idle
         * Therefore, the skipped update instances need to be cached
        */
        const clone: Update<S, A> = {
          lane: updateLane,
          action: update.action,
          hasEagerState: update.hasEagerState,
          eagerState: update.eagerState,
          next: (null: any),
        };
        /**
         * Add the skipped update to newBaseQueue
         * Recalculate during the next render
        */
        if (newBaseQueueLast === null) {
          newBaseQueueFirst = newBaseQueueLast = clone;
          newBaseState = newState;
        } else {
          newBaseQueueLast = newBaseQueueLast.next = clone;
        }
        // Update the remaining priority in the queue.
        // TODO: Don't need to accumulate this. Instead, we can remove
        // renderLanes from the original lanes.
        // Update the lanes of the WIP fiber; during the next render, the key of the skipped update will be recalculated
        // completeWork will collect these lanes to the root (merging into the root happens in commitRootImpl), and then reschedule (ensureRootIsScheduled in commitRootImpl)
        currentlyRenderingFiber.lanes = mergeLanes(
          currentlyRenderingFiber.lanes,
          updateLane,
        );
        // Mark the skipped lanes on workInProgressRootSkippedLanes
        markSkippedUpdateLanes(updateLane);
      } else {
        // This update does have sufficient priority.
        // In the case of sufficient priority, the update is executed

        if (newBaseQueueLast !== null) {
          /**
           * If newBaseQueueLast is not null, it indicates that there are skipped updates
           * The state calculation of the update may be related
           * Therefore, once an update is skipped, it will be taken as the starting point,
           * and all subsequent updates will be taken regardless of priority.
           * (Similar to the handling logic of class components)
          */
          const clone: Update<S, A> = {
            // This update is going to be committed so we never want to uncommit
            // it. Using NoLane works because 0 is a subset of all bitmasks, so
            // this will never be skipped by the check above.
            lane: NoLane,
            action: update.action,
            hasEagerState: update.hasEagerState,
            eagerState: update.eagerState,
            next: (null: any),
          };
          newBaseQueueLast = newBaseQueueLast.next = clone;
        }

        // Process this update.
        // Execute this update and calculate the new state
        if (update.hasEagerState) {
          // The state that has been calculated will be marked to avoid repeated calculations
          // If this update is a state update (not a reducer) and was processed eagerly,
          // we can use the eagerly computed state
          newState = ((update.eagerState: any): S);
        } else {
          // Calculate the new state based on state and action
          const action = update.action;
          newState = reducer(newState, action);
        }
      }
      update = update.next;
    } while (update !== null && update !== first);

    if (newBaseQueueLast === null) {
      newBaseState = newState;
    } else {
      newBaseQueueLast.next = (newBaseQueueFirst: any);
    }

    // Mark that the fiber performed work, but only if the new state is
    // different from the current state.
    // If the === check fails, mark the update on the current WIP fiber, which will be collected to the root during completeWork
    if (!is(newState, hook.memoizedState)) {
      markWorkInProgressReceivedUpdate();
    }
    // Update the new data in the hook
    hook.memoizedState = newState;
    hook.baseState = newBaseState;
    hook.baseQueue = newBaseQueueLast;

    queue.lastRenderedState = newState;
  }

  // Interleaved updates are stored on a separate queue. We aren't going to
  // process them during this render, but we do need to track which lanes
  // are remaining.
  /**
   * Handle interleaved updates
   * However, I decided to skip this analysis because I have no idea what kind of updates can be called interleaved updates
   * There is a description of this in /react-reconciler/src/ReactFiberWorkLoop.old.js
   * Received an update to a tree that's in the middle of rendering. Mark
that there was an interleaved update work on this root.
   * However, this does not connect at all with the settings for queue.interleaved in enqueueConcurrentHookUpdate and
   * enqueueConcurrentHookUpdateAndEagerlyBailout
   * If anyone has knowledge in this area, please guide me
  */
  const lastInterleaved = queue.interleaved;
  if (lastInterleaved !== null) {
    let interleaved = lastInterleaved;
    do {
      const interleavedLane = interleaved.lane;
      currentlyRenderingFiber.lanes = mergeLanes(
        currentlyRenderingFiber.lanes,
        interleavedLane,
      );
      markSkippedUpdateLanes(interleavedLane);
      interleaved = ((interleaved: any).next: Update<S, A>);
    } while (interleaved !== lastInterleaved);
  } else if (baseQueue === null) {
    // `queue.lanes` is used for entangling transitions. We can set it back to
    // zero once the queue is empty.
    queue.lanes = NoLanes;
  }

  const dispatch: Dispatch<A> = (queue.dispatch: any);
  return [hook.memoizedState, dispatch];
}

import { useEffect, useState, useRef, useCallback, useTransition } from "react";

function UseState() {
  const dom = useRef(null);
  const [number, setNumber] = useState(0);
  const [, startTransition] = useTransition();

  useEffect(() => {
    const timeout1 = setTimeout(() => {
      startTransition(() => { // Lower the priority to allow the update in timeout2 to interrupt
        setNumber((preNumber) => preNumber + 1);
      });
    }, 500 )

    const timeout2 = setTimeout(() => {
      dom.current.click();
    }, 505)

    return () => {
      clearTimeout(timeout1);
      clearTimeout(timeout2);
    }
  }, []);

  const clickHandle = useCallback(() => {
    console.log('click');
    setNumber(preNumber => preNumber + 2);
  }, []);

  return (
    <div ref={dom} onClick={ clickHandle }>
      {
        Array.from(new Array(20000)).map((item, index) => <span key={index}>{ number }</span>)
      }
    </div>
  )
}

export default UseState;

import { useEffect, useState } from "react";

function UseState() {
  const [num1, setNum1] = useState(1);
  const [num2, setNum2] = useState(2);

  useEffect(() => {
    setNum1(11);
    setNum2(22);
  }, []);

  return (
    <>
      <div>{ num1 }</div>
      <div>{ num2 }</div>
    </>
  )
}

export function scheduleUpdateOnFiber(
  root: FiberRoot,
  fiber: Fiber,
  lane: Lane,
  eventTime: number,
) {
  // Count the number of times the root synchronously re-renders without
  // finishing. If there are too many, it indicates an infinite update loop.
  checkForNestedUpdates();

  // Mark that the root has a pending update.
  markRootUpdated(root, lane, eventTime);

  if (
    (executionContext & RenderContext) !== NoLanes &&
    root === workInProgressRoot
  ) {
    /**
     * Error handling, skip
    */
  } else {
    ...
    /**
     * Important function! Trigger the core of task scheduling
     * The logic we are looking for is also inside
    */
    ensureRootIsScheduled(root, eventTime);
    ...
    // The following is compatibility code for Legacy mode, not analyzed here
  }
}

function ensureRootIsScheduled(root: FiberRoot, currentTime: number) {
  /**
   * root.callbackNode is the task generated by the Scheduler during scheduling,
   * and this value will be returned by React when calling scheduleCallback and assigned to root.callbackNode
   * From the variable name existingCallbackNode, it is not difficult to infer that this variable is used to represent an already scheduled task (old task)
  */
  const existingCallbackNode = root.callbackNode;

  // Check if any lanes are being starved by other work. If so, mark them as
  // expired so we know to work on those next.
  /**
   * This is to check if there are any tasks waiting that have expired (for example, some high-priority tasks have been interrupting,
   * causing low-priority tasks to be unable to execute and expire). If there are expired tasks, their lanes will be marked
   * on expiredLanes, allowing React to call them immediately with synchronous priority.
  */
  markStarvedLanesAsExpired(root, currentTime);

  // Determine the next lanes to work on, and their priority.
  // Get renderLanes
  const nextLanes = getNextLanes(
    root,
    root === workInProgressRoot ? workInProgressRootRenderLanes : NoLanes,
  );

  /**
   * If renderLanes is empty, it means there is currently no need to start scheduling, exit
  */
  if (nextLanes === NoLanes) {
    // Special case: There's nothing to work on.
    if (existingCallbackNode !== null) {
      cancelCallback(existingCallbackNode);
    }
    root.callbackNode = null;
    root.callbackPriority = NoLane;
    return;
  }

  // We use the highest priority lane to represent the priority of the callback.
  /**
   * Generate the priority of the task corresponding to the highest priority in renderLanes
  */
  const newCallbackPriority = getHighestPriorityLane(nextLanes);

  // Check if there's an existing task. We may be able to reuse it.
  /**
   * Get the priority of the old task
  */
  const existingCallbackPriority = root.callbackPriority;
  /**
   * If the priorities of the two tasks are the same, then exit directly, as there is already a corresponding task that can be reused
   * This is also where batching is implemented
  */
  if (
    existingCallbackPriority === newCallbackPriority
  ) {
    // The priority hasn't changed. We can reuse the existing task. Exit.
    // The priority hasn't changed, so we can reuse the old task, thus exiting
    return;
  }

  /**
   * Interruption logic
   * The logic entering here can be considered to have a higher priority than the old task, so it needs to be rescheduled
   * Therefore, the old task does not need to be called, so it can be canceled (the cancellation logic can be seen in the Scheduler)
  */
  if (existingCallbackNode != null) {
    // Cancel the existing callback. We'll schedule a new one below.
    cancelCallback(existingCallbackNode);
  }

  // Schedule a new task
  let newCallbackNode;
  if (newCallbackPriority === SyncLane) {
    // Special case: Sync React callbacks are scheduled on a special
    // internal queue
    /**
     * Synchronous priority means this may be an expired task or the current mode is non-concurrent
    */
    if (root.tag === LegacyRoot) {
      scheduleLegacySyncCallback(performSyncWorkOnRoot.bind(null, root));
    } else {
      scheduleSyncCallback(performSyncWorkOnRoot.bind(null, root));
    }
    if (supportsMicrotasks) {
      // Flush the queue in a microtask.
      /**
       * If the browser supports microtasks, put performSyncWorkOnRoot into the microtask
       * This way it can be executed faster
       * An event loop follows the order of an old MacroTask → clear microtasks → browser renders the page
       * Otherwise, entering the Scheduler, the tasks processed by MessageChannel are all MacroTasks, which will render in the next
       * event loop.
      */
      scheduleMicrotask(() => {
        if (
          (executionContext & (RenderContext | CommitContext)) ===
          NoContext
        ) {
          /**
           * Here, the scheduled task above will be canceled and then performSyncWorkOnRoot will be called
          */
          flushSyncCallbacks();
        }
      });
    } else {
      // Flush the queue in an Immediate task.
      scheduleCallback(ImmediateSchedulerPriority, flushSyncCallbacks);
    }
    newCallbackNode = null;
  } else {
    // Handling logic for concurrent mode
    let schedulerPriorityLevel;
    // Convert renderLanes to scheduling priority
    switch (lanesToEventPriority(nextLanes)) {
      case DiscreteEventPriority:
        schedulerPriorityLevel = ImmediateSchedulerPriority;
        break;
      case ContinuousEventPriority:
        schedulerPriorityLevel = UserBlockingSchedulerPriority;
        break;
      case DefaultEventPriority:
        schedulerPriorityLevel = NormalSchedulerPriority;
        break;
      case IdleEventPriority:
        schedulerPriorityLevel = IdleSchedulerPriority;
        break;
      default:
        schedulerPriorityLevel = NormalSchedulerPriority;
        break;
    }
    /**
     * Use the corresponding priority to schedule React's task
    */
    newCallbackNode = scheduleCallback(
      schedulerPriorityLevel,
      performConcurrentWorkOnRoot.bind(null, root),
    );
  }
  // Update the task priority and task on the root so that it can be retrieved during the next scheduling
  // The old task used at the beginning
  root.callbackPriority = newCallbackPriority;
  root.callbackNode = newCallbackNode;
}
